Technical Data
Door form: single door
Carrying weight: <1 x 100kg
Applicable door width: <1200mm
Power supply voltage: AC220V$10%, 50/60Hz
Opening time: 3-75/90° (adjustable)
Open time: 1-30S (adjustable)
Protection level: IP12D
Product weight (unit): 6.5kg
Unit size(DSW100): 520X95X82mm
Unit size(DSW100N): 540X95X82mm
Ambient temperature: -20 ~ +55°C
• Features

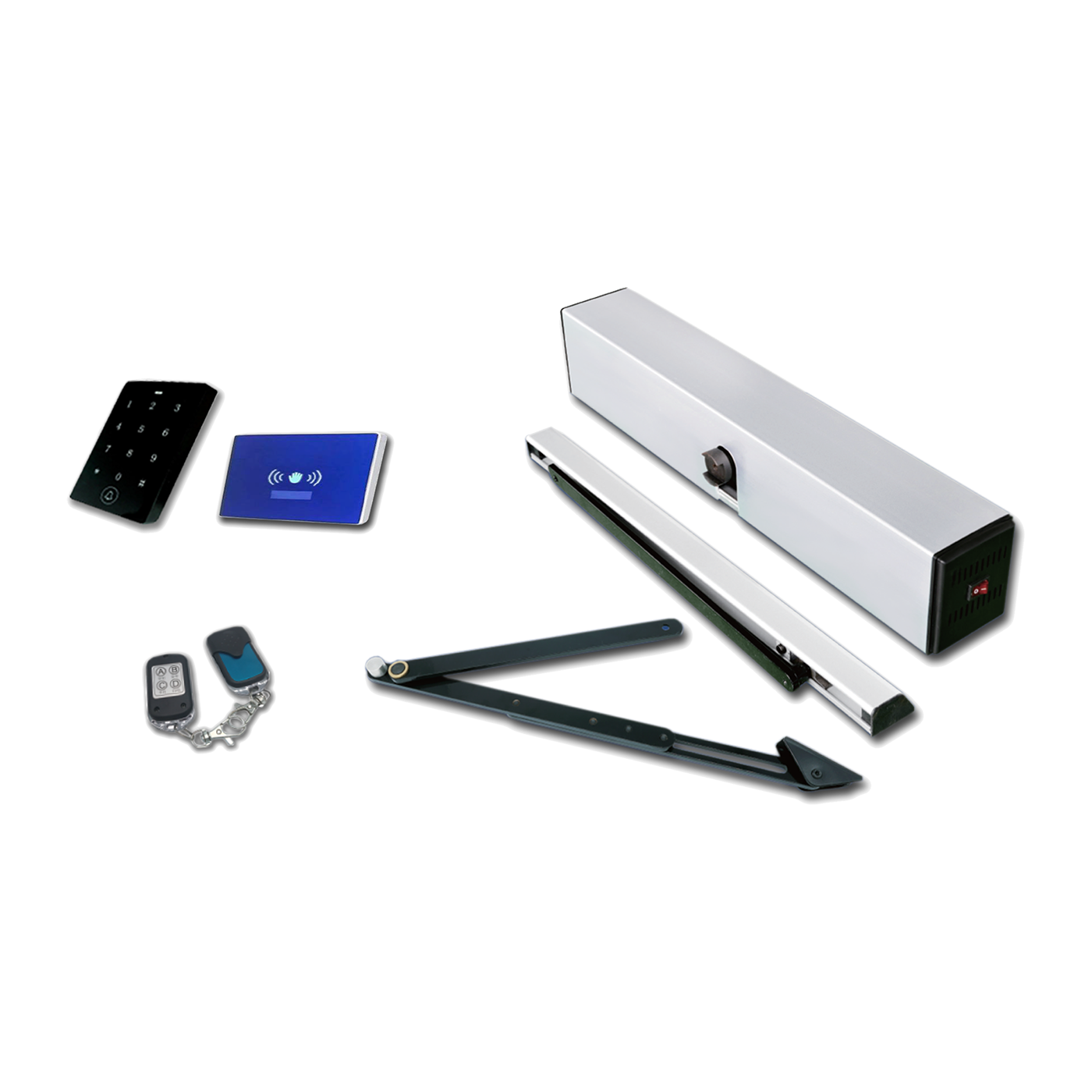

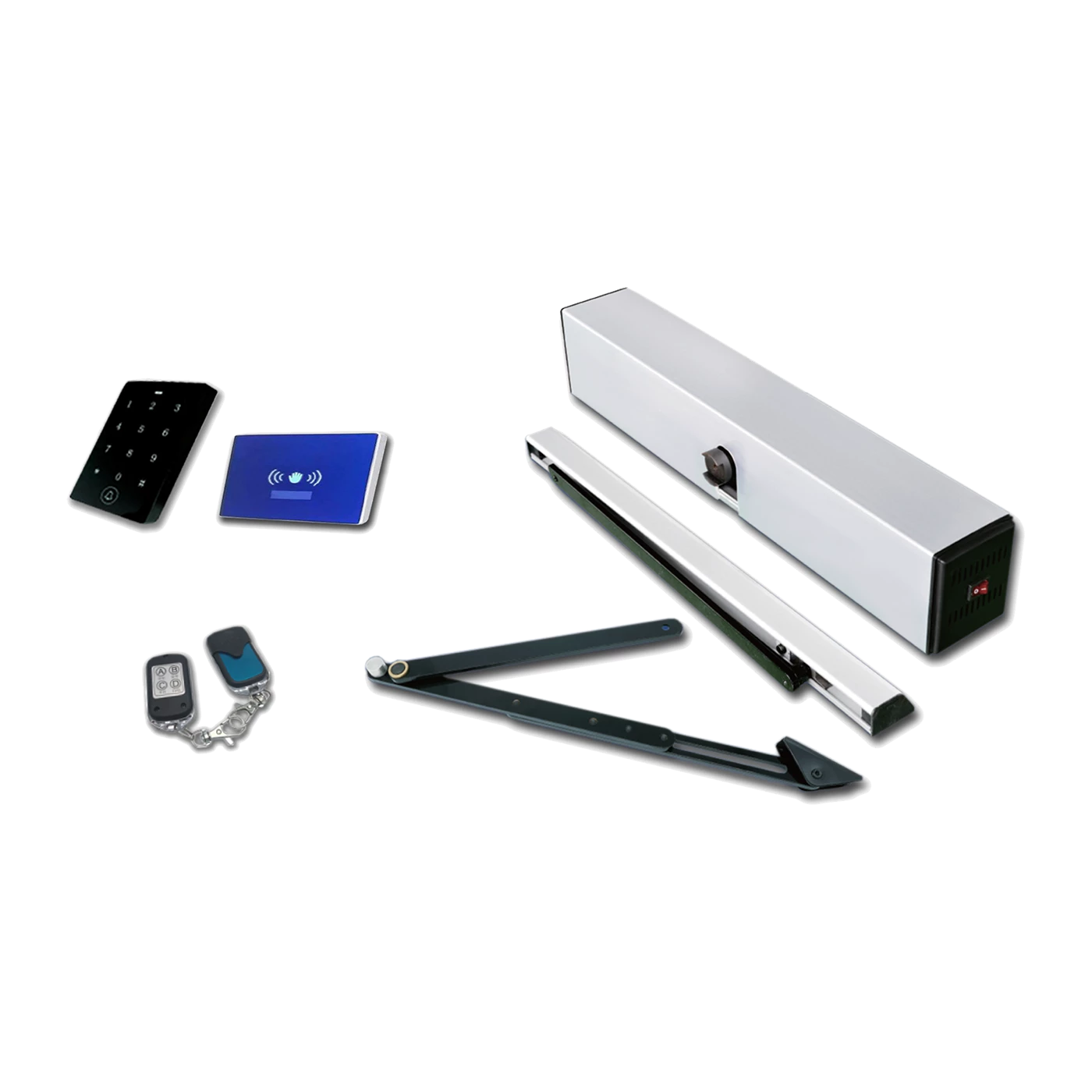

The DSW100 drive unit operates with low noise, reliable performance and safe use, providing more convenience for living and working environments.
The DSW100N is a new upgraded transformer-less drive that offers a wider range of supply power voltages. Provides interfaces such as sensors, access control, and security sensor protection, and is equipped with interfaces for magnetic electric lock and backup battery too.
UPS power can be configured to meet security requirements. Both them can realize Interlocking function between door and door.
If touch obstacles or personnel in operation, the door will open in the opposite direction.
Applicable to office buildings, storefronts, banks, factories, restaurants, hotels, shopping centers, laboratories, hospitals and other places.
